CH-47D Chinook Structural Drawings




A model Chinook under construction - this photograph shows that it is well on the way to becoming airworthy.

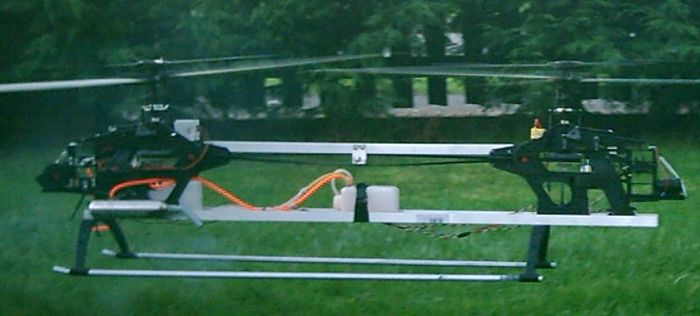

             This photograph is of a remote controlled model Chinook, designed and manufactured by Alex McEwan (www.RotorWash.co.uk) undergoing flight testing, circa January 2004. It just needs some fine tuning and the skin to complete the project.



             As so often requested, for all you modeler types out there working so hard to build a flying remote control version of the Chinook, here are some drawings to help you build the fuselage.

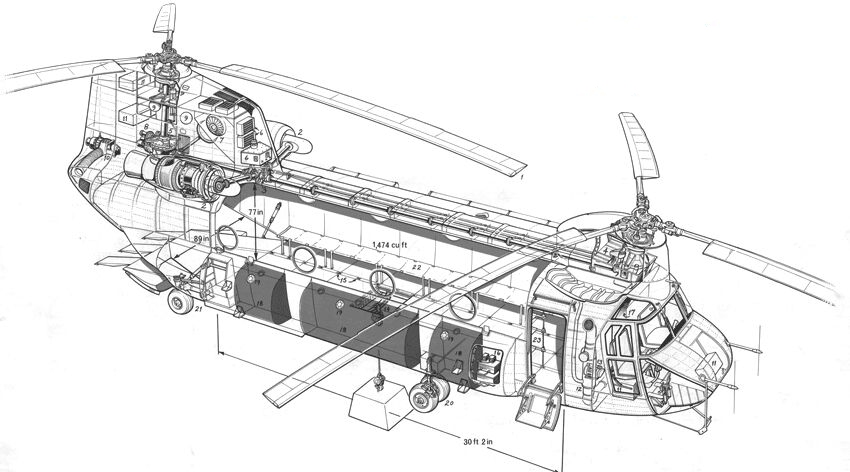

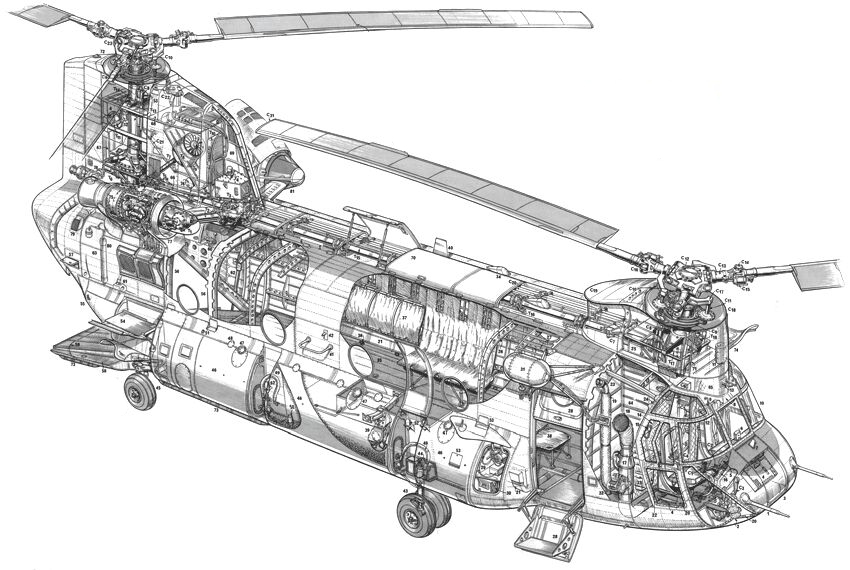

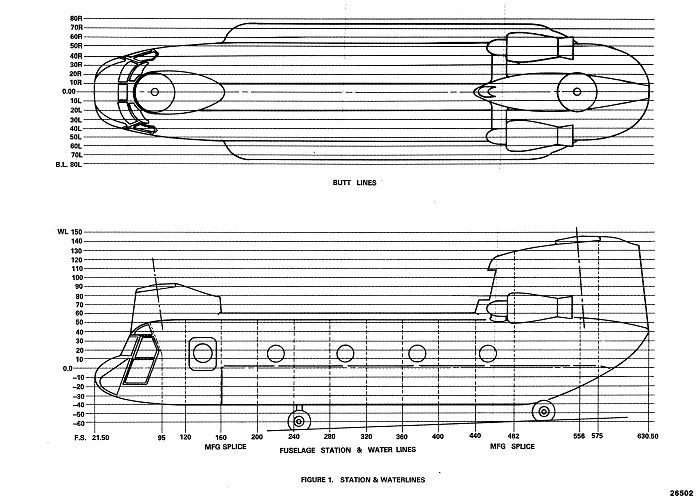

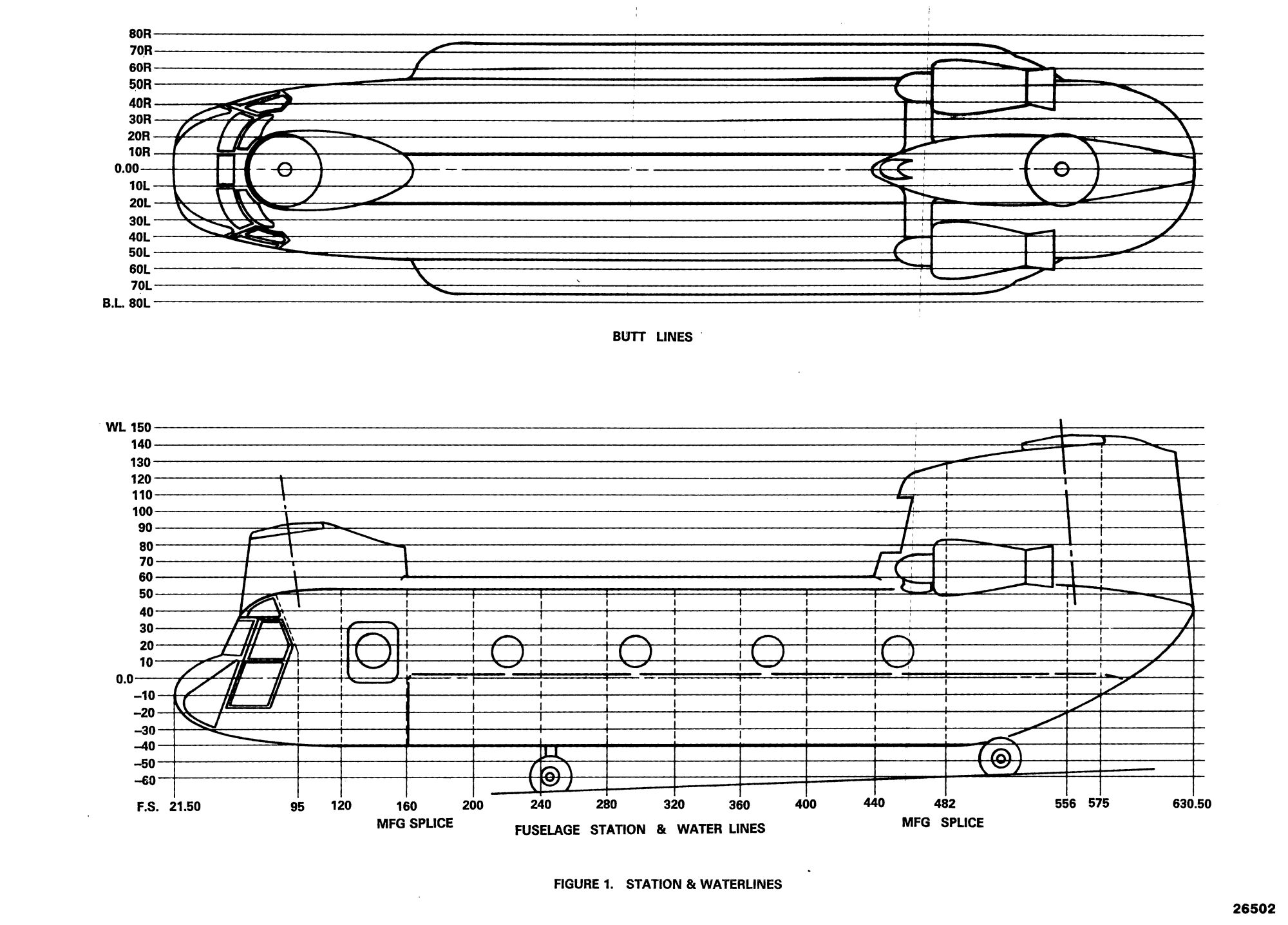

CH-47D Chinook Station and Water Line figures.

             A drawing of the CH-47D Chinook helicopter showing the Butt, Station, and Water Lines. The numbers shown represent inches aft of the front of the Pitot Tube, which extends 21.5 inches in front of the cockpit. Click-N-Go Here to view a larger version [385 Kb].

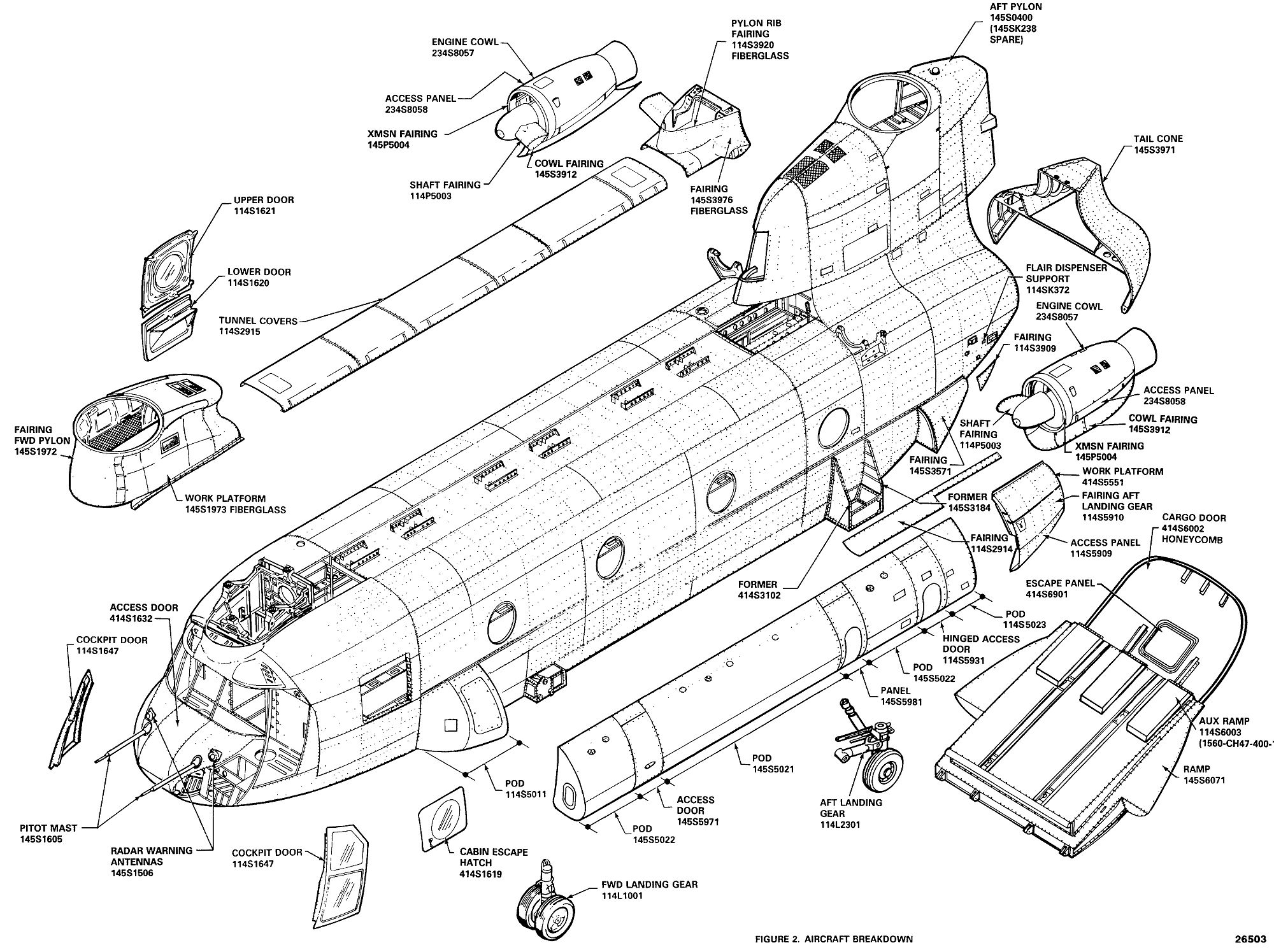

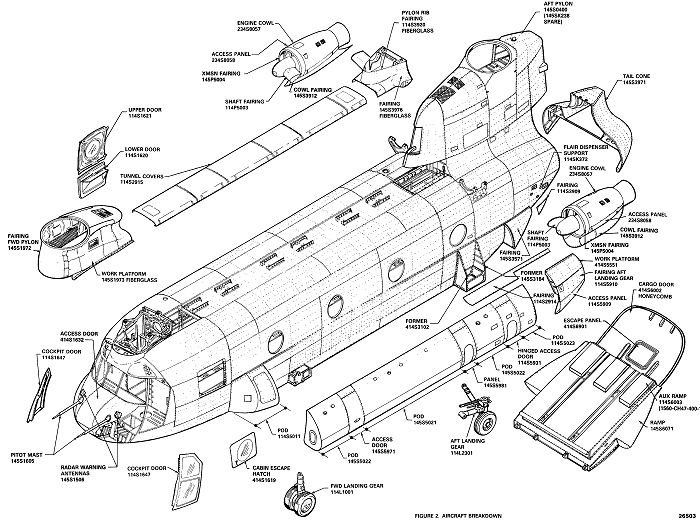

A drawing of the CH-47D Chinook helicopter showing a breakdown of the airframe and it's major areas.

             A drawing of the CH-47D Chinook helicopter showing a breakdown of the airframe and it's major areas. Click-N-Go Here to view a larger version [590 Kb].

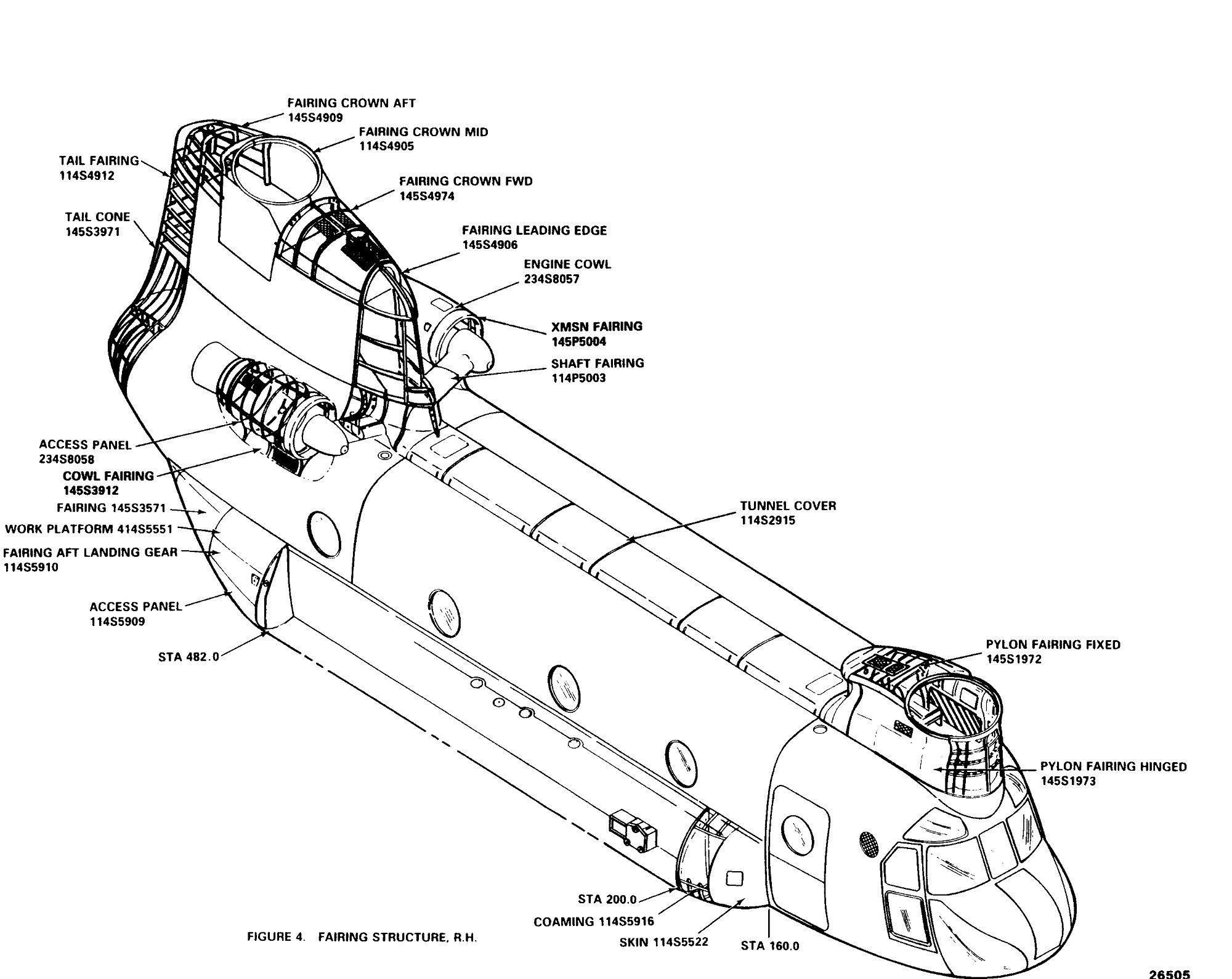

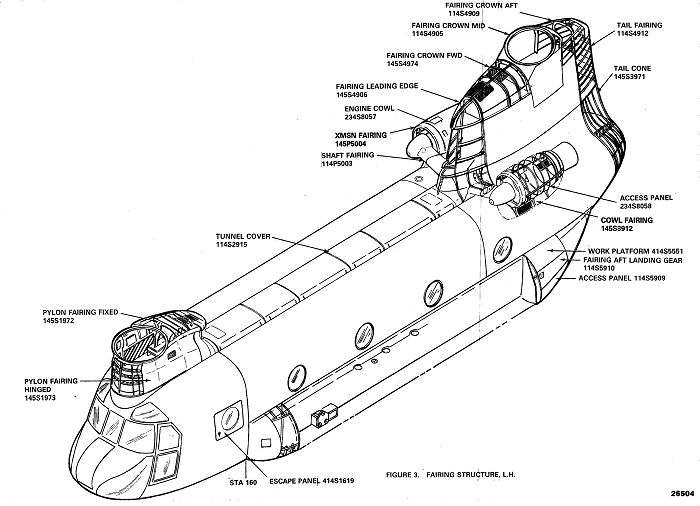

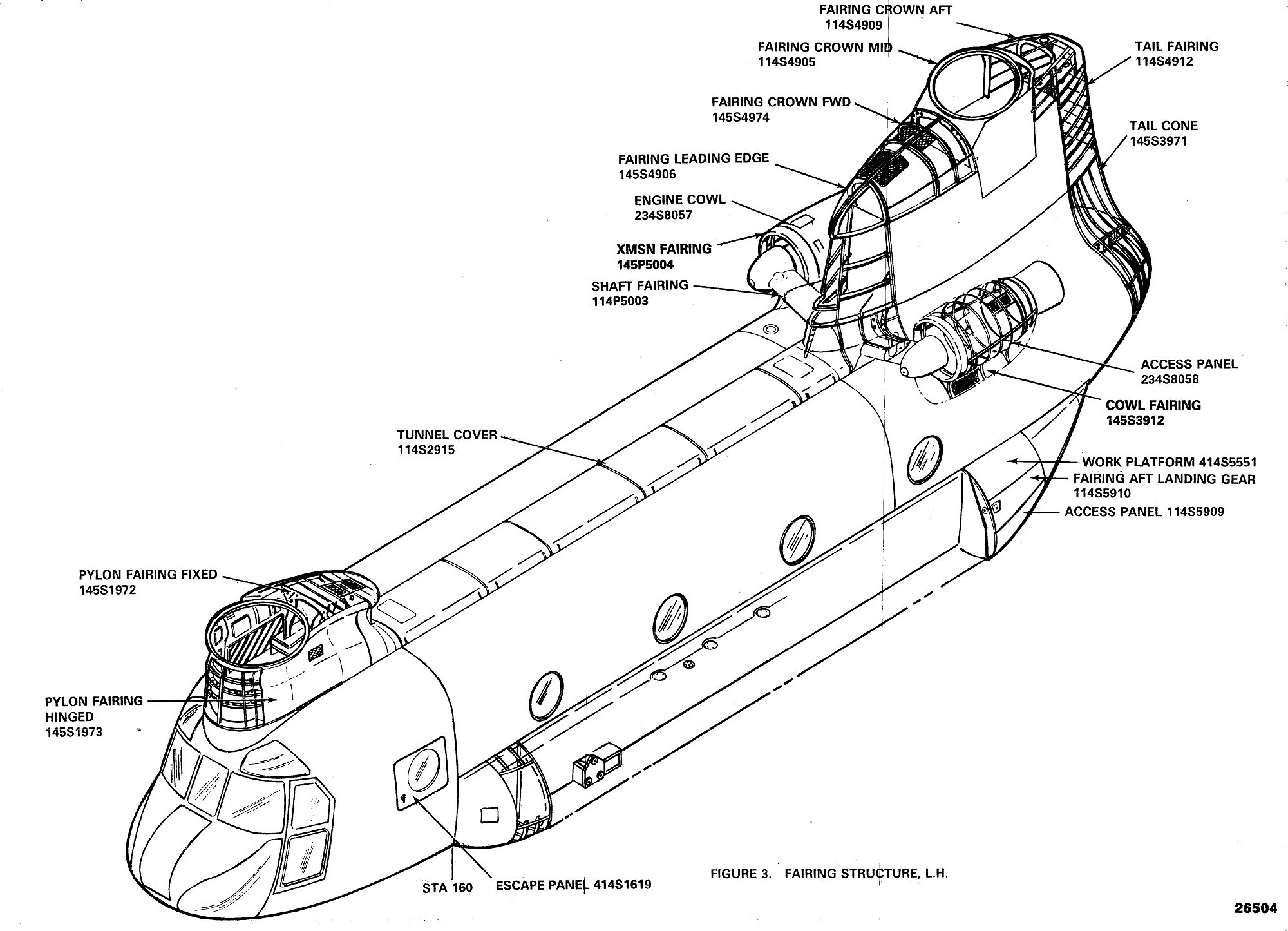

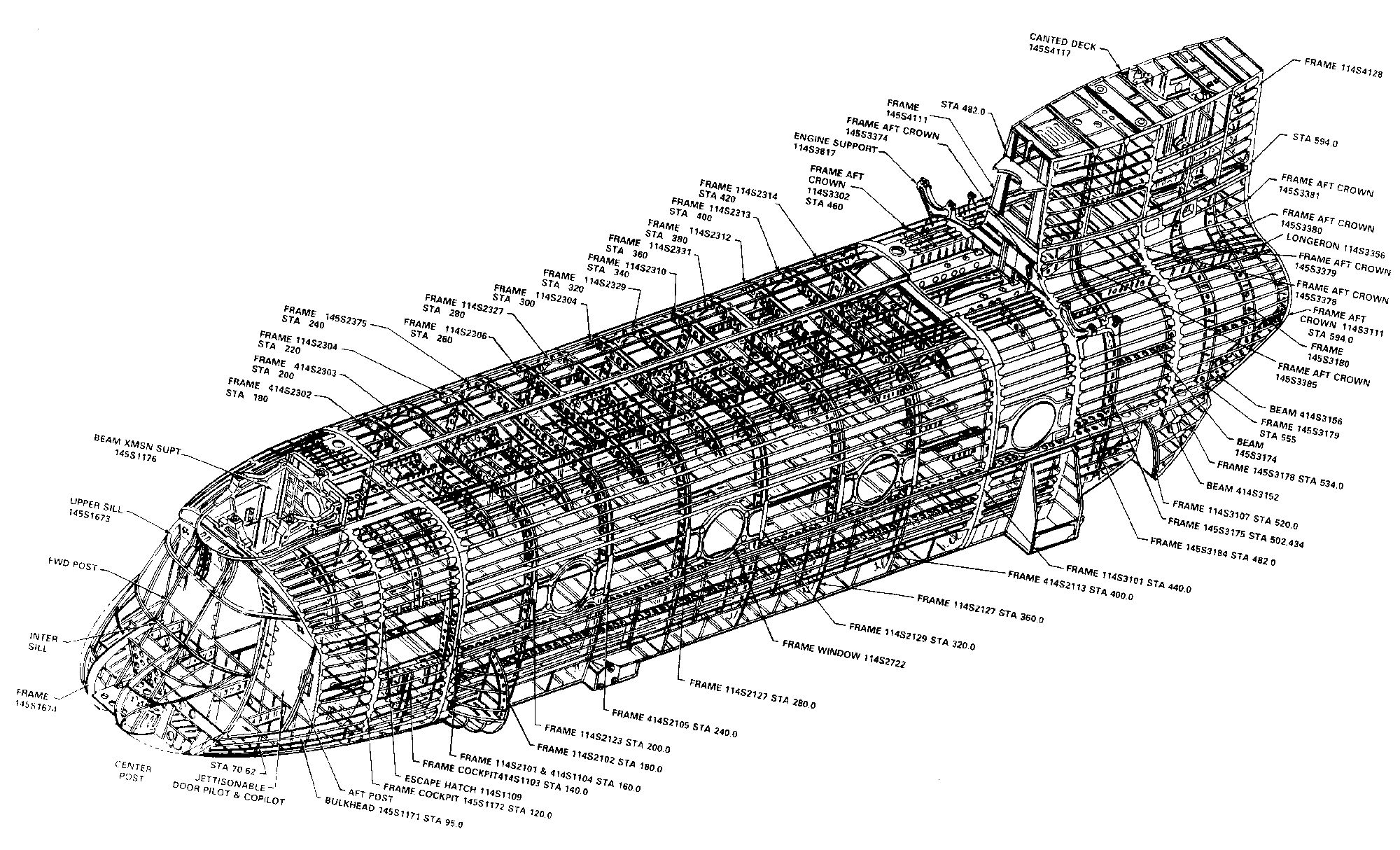

A drawing of the CH-47D Chinook helicopter showing the left side of the airframe.

             A drawing of the CH-47D Chinook helicopter showing the left side of the airframe.    Click-N-Go Here to view a larger version [329 Kb].






A drawing of the CH-47D Chinook helicopter showing the right side of the airframe.

             A drawing of the CH-47D Chinook helicopter showing the right side of the airframe.    Click-N-Go Here to view a larger version [332 Kb].

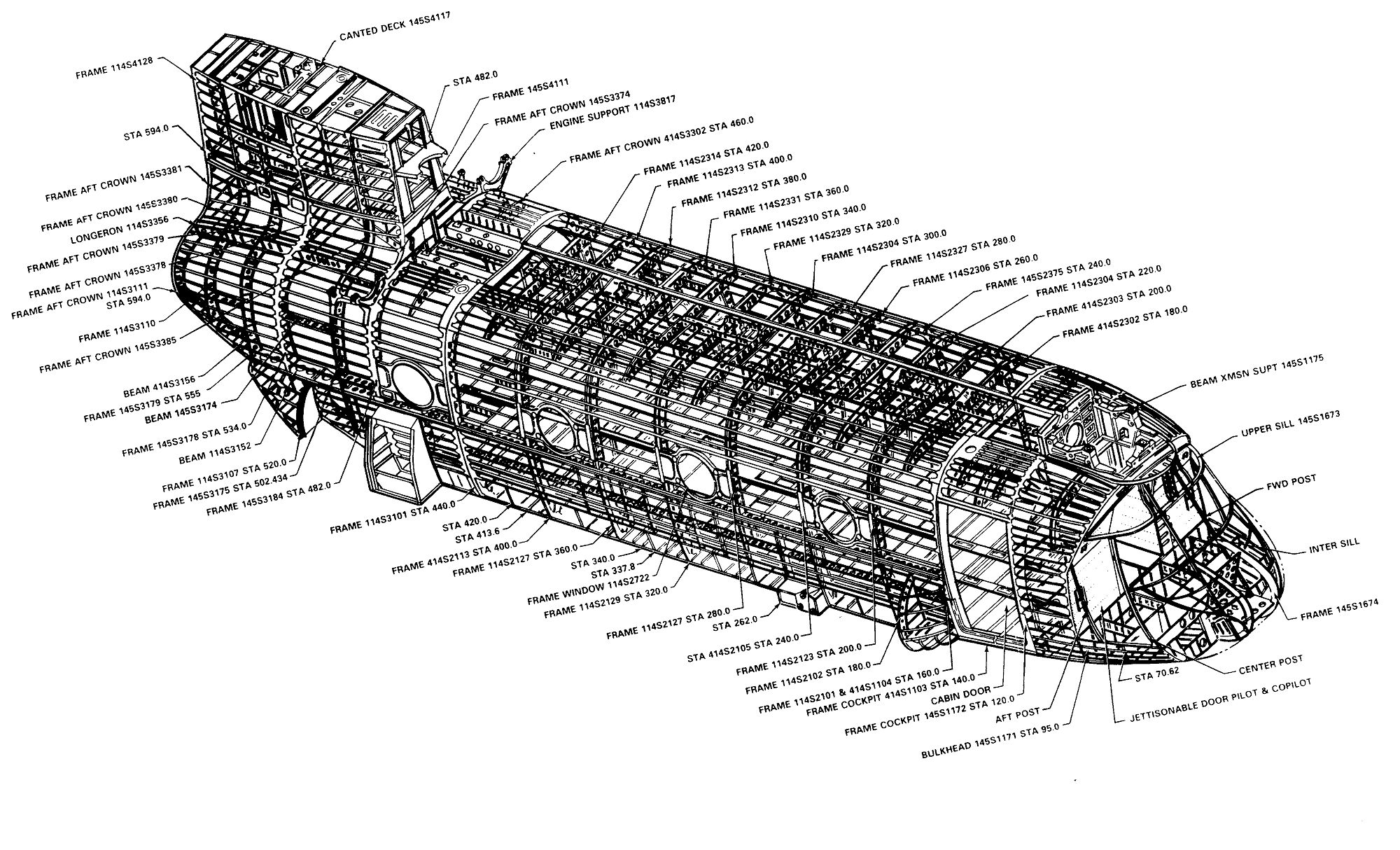

A drawing of the CH-47D Chinook helicopter showing the left side of the airframe and the stringer/longeron layout.

             A drawing of the CH-47D Chinook helicopter showing the left side of the airframe and the stringer/longeron layout. Click-N-Go Here to view a larger version [332 Kb].

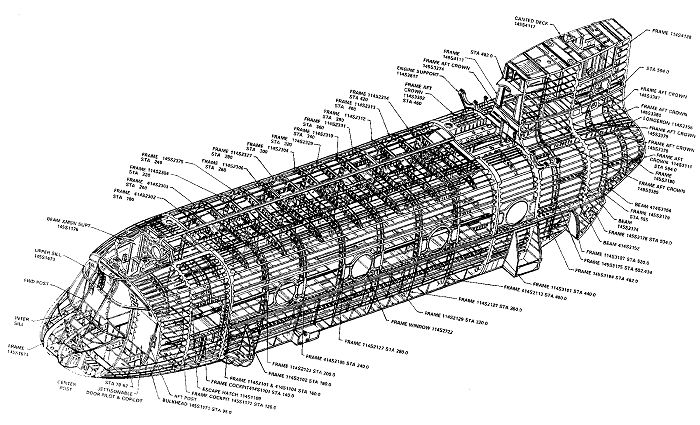

A drawing of the CH-47D Chinook helicopter showing the right side of the airframe and the stringer/longeron layout.

             A drawing of the CH-47D Chinook helicopter showing the right side of the airframe and the stringer/longeron layout. Click-N-Go Here to view a larger version [547 Kb].

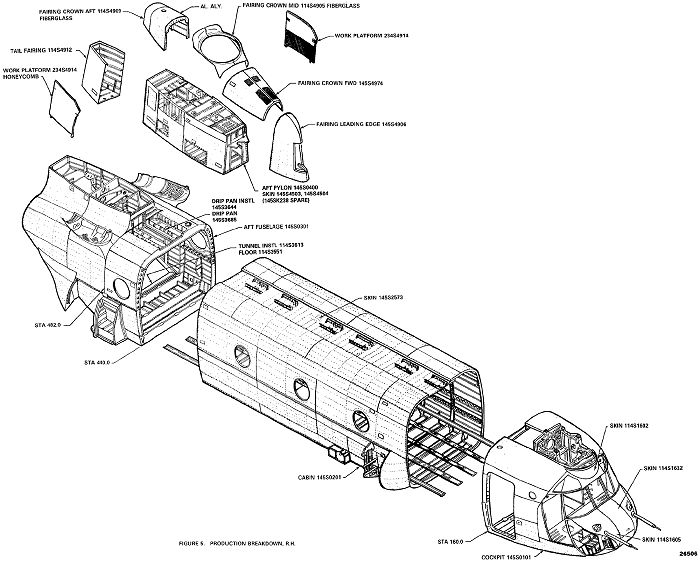

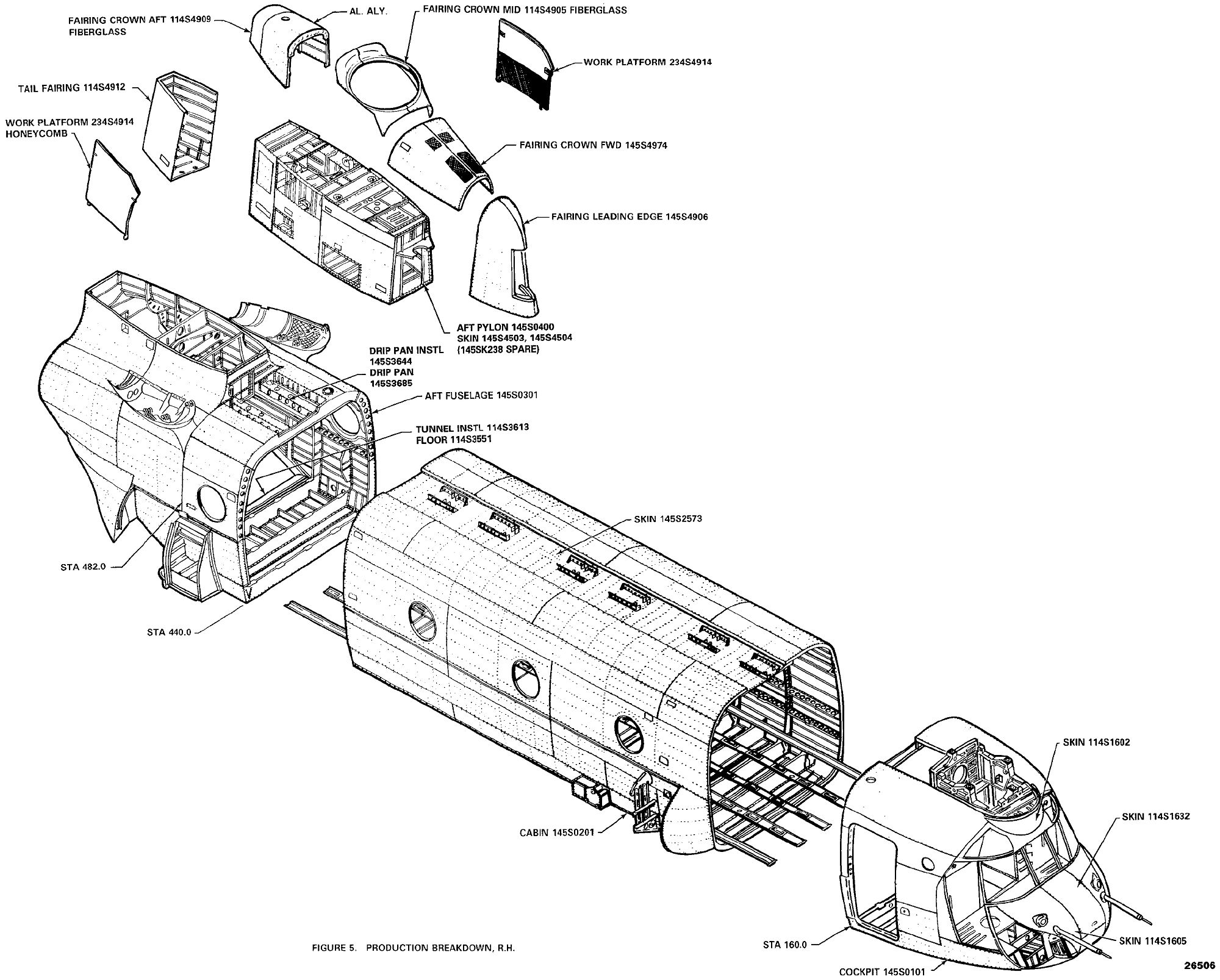

A drawing of the CH-47D Chinook helicopter showing the major manufactured portions of the airframe.

             A drawing of the CH-47D Chinook helicopter showing the major manufactured portions of the airframe. Click-N-Go Here to view a larger version [460 Kb].

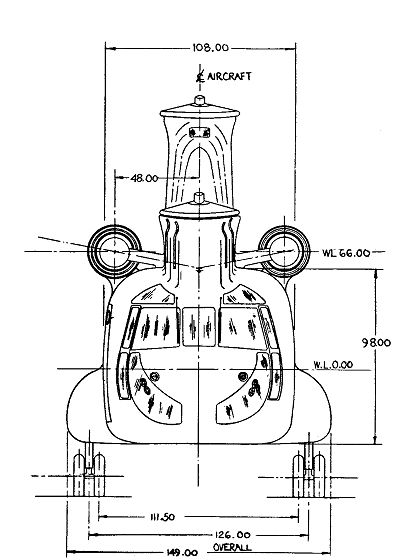

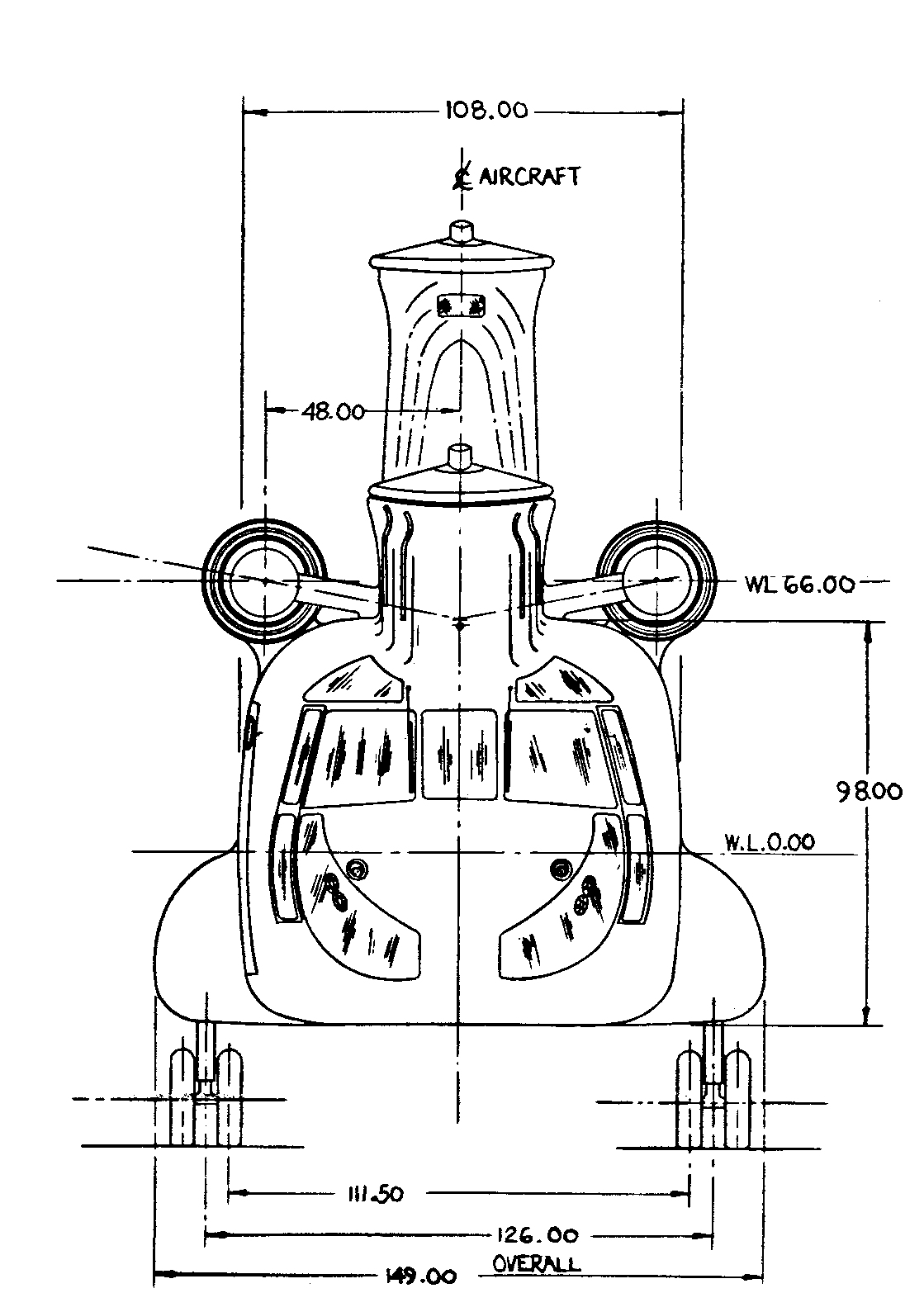

A drawing of the CH-47D Chinook helicopter showing the front view of the airframe.

             A drawing of the CH-47D Chinook helicopter showing the front view of the airframe. Click-N-Go Here to view a larger version [438 Kb].

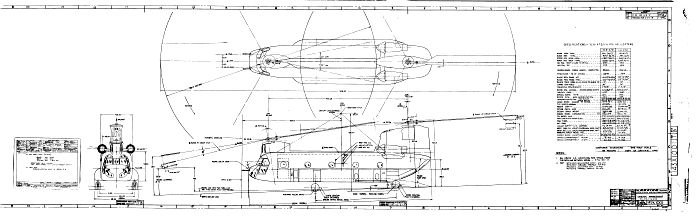

A three view engineering drawing of the YCH-47D Chinook helicopter.

             A three view drawing of the YCH-47D Chinook helicopter showing some interesting engineering information. Click-N-Go Here to view a larger version [6.6 Mb].





             If anyone has more detailed drawings of the Chinook, we sure would appreciate it if you would share them, just send them in via email. Thanks!





          Remote Controlled Chinook Helicopter



             Click-N-Go Here to check out a video of a remote controlled Chinook helicopter conducting in-flight maneuvers [10.9 Mb].





          The CH-47 - 40 years old and still circling the world.
